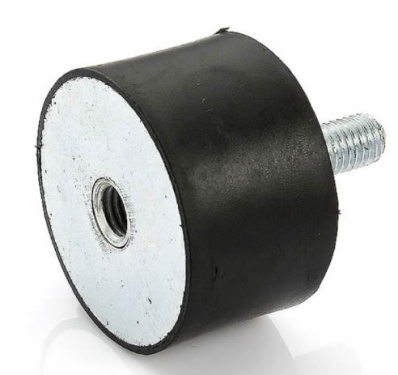

Typ B

Typ B
  •
  •
  •
  •
  •
Artikel-Nr.TypAussen Ø (mm)Höhe (mm)GewindeartLager
Rundpuffer Typ B Ø40mm H40mm M8 TYP B 40/40 M8Typ B4040M8 x 23
Rundpuffer Typ B Ø50mm H30mm M10 TYP B 50/30 M10Typ B5030M10 x 28
Rundpuffer Typ B Ø75mm H50mm M12 TYP B 75/50 M12Typ B7550M12 x 37
Rundpuffer Typ B Ø40mm H30mm M10 TYP B 40/30 M10Typ B4030M10 x 25
Rundpuffer Typ B Ø30mm H25mm M8 TYP B 30/25 M8Typ B3025M8 x 20
Rundpuffer Typ B Ø20mm H15mm M6 TYP B 20/15 M6Typ B2015M6 x 15
Rundpuffer Typ B Ø20mm H20mm M6 TYP B 20/20 M6Typ B2020M6 x 15
Rundpuffer Typ B Ø30mm H15mm M8 TYP B 30/15 M8Typ B3015M8 x 20
Rundpuffer Typ B Ø30mm H20mm M8 TYP B 30/20 M8Typ B3020M8 x 20
Rundpuffer Typ B Ø40mm H30mm M8 TYP B 40/30 M8Typ B4030M8 x 23
Rundpuffer Typ B Ø50mm H20mm M10 TYP B 50/20 M10Typ B5020M10 x 28
Rundpuffer Typ B Ø75mm H40mm M12 TYP B 75/40 M12Typ B7540M12 x 37
Rundpuffer Typ B Ø50mm H45mm M10 TYP B 50/45 M10Typ B5045M10 x 28
Rundpuffer Typ B Ø25mm H25mm M6 TYP B 25/25 M6Typ B2525M6 x 18
Rundpuffer Typ B Ø20mm H25mm M6 TYP B 20/25 M6Typ B2025M6 x 15
Rundpuffer Typ B Ø50mm H40mm M10 TYP B 50/40 M10Typ B5040M10 x 28
Rundpuffer Typ B Ø30mm H30mm M8 TYP B 30/30 M8Typ B3030M8 x 20
Rundpuffer Typ B Ø30mm H40mm M8 TYP B 30/40 M8Typ B3040M8 x 20
Rundpuffer Typ B Ø25mm H15mm M6 TYP B 25/15 M6Typ B2515M6 x 18
Rundpuffer Typ B Ø25mm H20mm M6 TYP B 25/20 M6Typ B2520M6 x 18
Rundpuffer Typ B Ø10mm H15mm M4 TYP B 10/15 M4Typ B1015M4 x 10
